How to Configure TP-Link wireless Router

SETP 1:

Open the web browser and type the LAN IP address of the router in the address bar, the default IP address of TP-LINK router is 192.168.1.1. Press Enter.

Setp 2:

Type the username and password in the login page, the default username and password are both admin.

Setp 3:

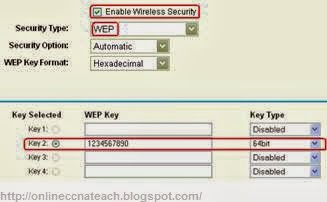

Click Wireless > Wireless Settings on left page, enable Wireless Security and select Security Type as WEP.

Note:
Please select Key2 and configure the password.

Setp 4:

Save the settings.

Setp 5:

Click Wireless > MAC Filtering on left page, enable Wireless MAC Address Filtering and select the Filtering Rules as Deny the stations not specified by any enabled entries in the list to access. Click Add New to configure the detailed rule.

Setp 6:

Input the wireless adapter’s MAC address which you would like to connect the wireless network with an individual password, select Privilege and configure WEP key. The key is just for the computer with the configured MAC address.

Setp 7:

Simply click Add A new comer to configure brand-new code for other computers.

Soon after placing diverse WEP recommendations for diverse computers, diverse accounts are going to be essential when connecting towards the instant circle. As an example, we configure WEP important 0123456789 for pc1 and also configure WEP important 1234567899 for pc2 as the screenshot below. As soon as pc1 joins towards the instant circle, it requires code 0123456789. As soon as pc2 joins towards the instant circle, it requires code 1234567899.
